3LD2704-0TK51
140,00 €
In Stock

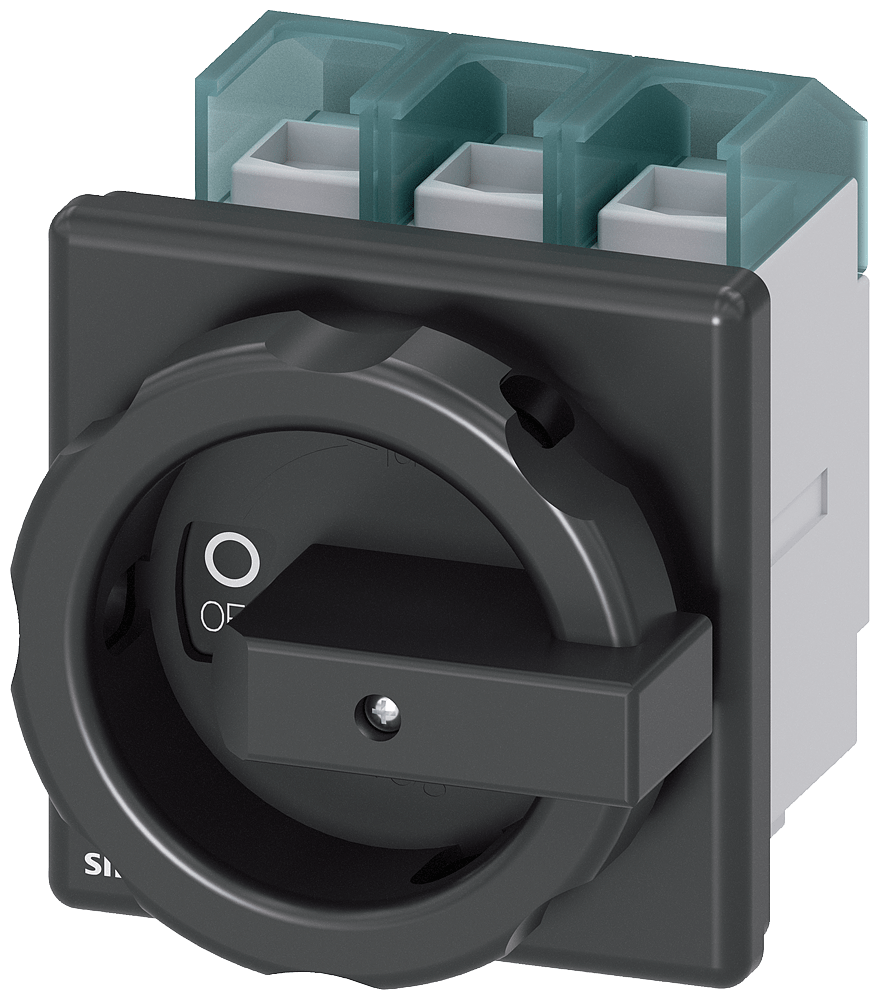

SENTRON, 3LD switch disconnector, main control switch, 3-pole, Iu: 100 A
In Stock
Description
- Type: Switch disconnector 3LD
- Poles: 3-pole
- Iu: 100 A
- Operating power / at AC-23 A at 400 V: 37 kW
- Front-mounted
- Rotary operating mechanism
- Color: Black
- Mounting: 4-hole mounting of the handle
- Degree of protection: IP65
- Approvals: IEC, UL, CCC, shipbuilding
- Modular design allows for fast and easy mounting of auxiliary switches, N-PE terminal, or 4th pole.
- Optimum disconnection of 16 A of 250 A from the power supply due to the locking capability of the rotary operating mechanism.
- Versatile usage worldwide with international approvals.
- Available in a wide range of variants for various mounting options.
- End-to-end safety for users and systems.
Sentron, Switch Disconnector 3LD
The main switch 3LD is designed for the safe shutdown of loads in various applications, including three-phase motors and air conditioning systems.
Technical details:
Customer benefits:
Disclaimer: Generated by AI.
Additional information
| Dimensions | 11,25 × 9 × 10,7 cm |
|---|---|
| PriceGroup | 53P |
| Product page (external) | Open link ↗ |
