3LD2203-0TK51

Description

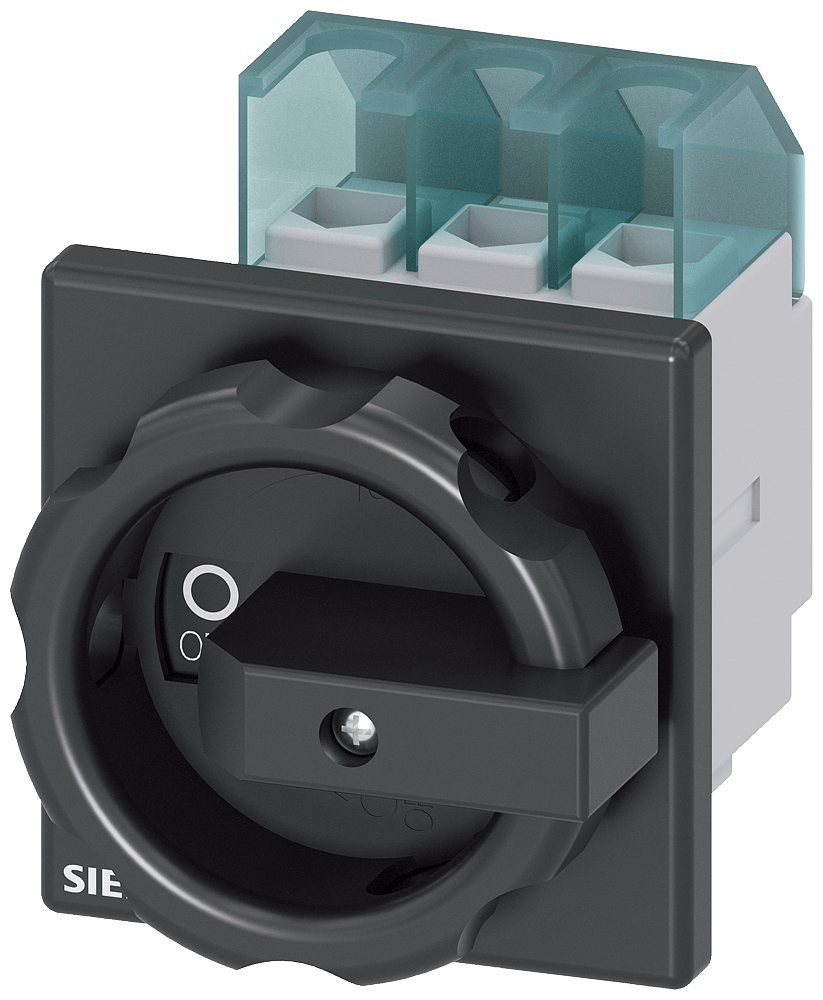

Sentron, Switch disconnector 3LD

The SENTRON 3LD is a main switch designed for the safe shutdown of loads in various applications.

Technical details:

• Type: Switch disconnector 3LD
• Poles: 3-pole
• Iu: 32 A
• Operating power / at AC-23 A at 400 V: 11.5 kW
• Mounting: Front-mounted, 4-hole mounting of the handle
• Protection degree: IP65 with encapsulated enclosure for outdoor applications
• Approvals: IEC, UL, CCC, and shipbuilding approvals
• Variants available for DC applications
• Modular design for easy mounting of auxiliary switches and N-PE terminal

Customer benefits:

• Safe shutdown of loads in various areas including three-phase motors, air conditioning, and ventilation systems
• Optimum disconnection of 16 A of 250 A from the power supply due to locking capability
• Versatile use worldwide thanks to international approvals
• Available in various mounting options including front mounting and DIN rail
• End-to-end safety for users and systems
