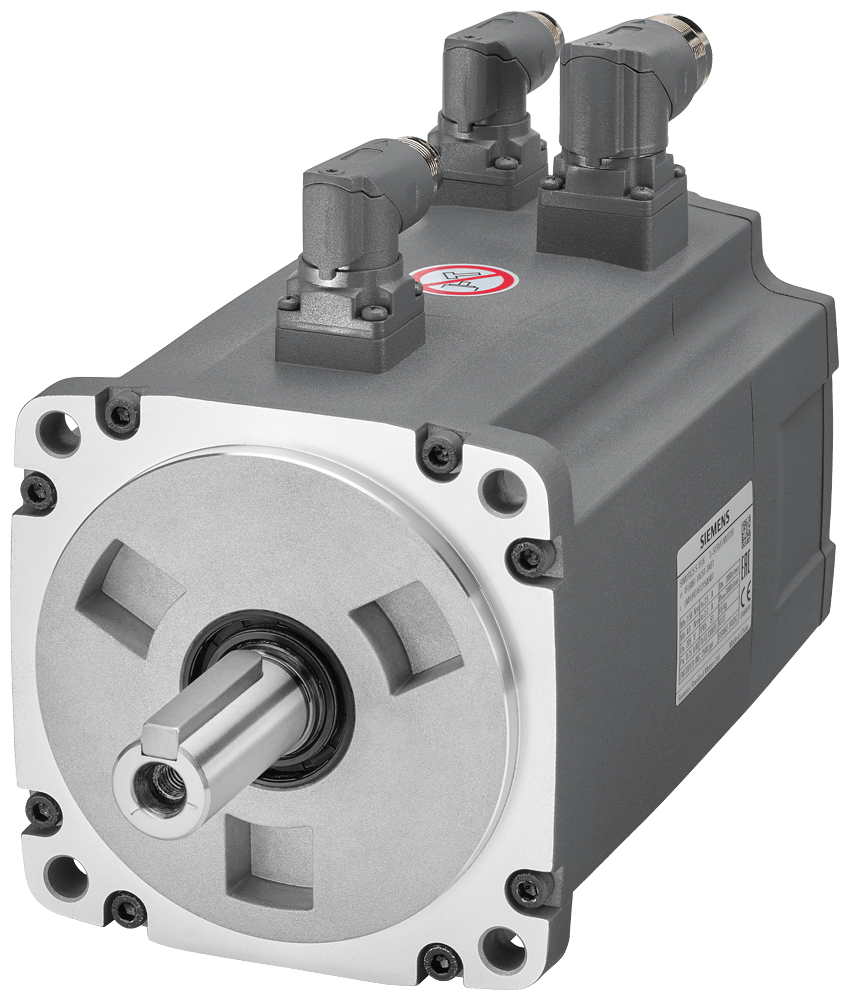

1FL6090-1AC61-2LB1

Description

Simotics S-1FL6

The SIMOTICS S-1FL6 servo motor is suitable for simple and highly dynamic applications in conjunction with the SINAMICS V90 servo converter.

Technical details:

• Operating voltage: 3AC 400 V
• Pn=2.5 kW; Nn=2000 rpm
• M0=15 Nm; MN=11.9 Nm
• Shaft height: 90 mm, with angle plug
• Absolute encoder: 20-bits (12-bit multi-turn) with feather key, tolerance with holding brake
• Degree of protection: IP65 with sealing ring
• Compatible with: converters
• High moment of inertia motor for better load adjustment and optimal control quality
• Braking performance: between 0.40 kW and 7.00 kW
• Rated torque range: 1.27 Nm to 33.40 Nm
• Rated speed range: 2000 rpm to 3000 rpm
• Quick-release connector for easy installation
• Natural cooling as standard

Customer benefits:

• High dynamic response
• Accuracy and compact dimensions
• Seamless drive system when combined with SINAMICS V90 converter and MOTION-CONNECT 300 connection system
• Adaptable to specific user requirements with various options available
