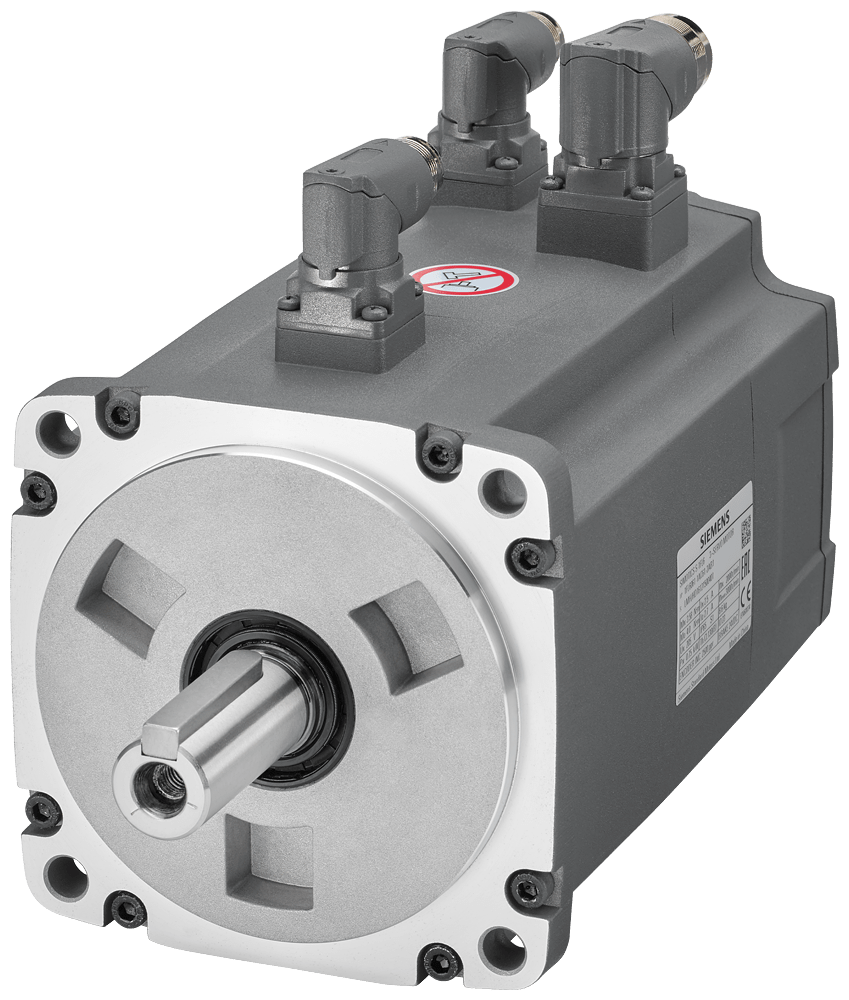

1FL6066-1AC61-2LG1

Description

Simotics S-1FL6

The SIMOTICS S-1FL6 servo motor is suitable for simple and highly dynamic applications in conjunction with the SINAMICS V90 servo converter.

Technical details:

• Operating voltage: 3AC 400 V
• Pn: 1.75 kW
• Nn: 2000 rpm
• M0: 11 Nm
• MN: 8.36 Nm
• Shaft height: 65 mm, with angle plug
• Absolute encoder: 20-bits (12-bit multi-turn)
• Plain shaft, Tolerance N without holding brake
• Degree of protection: IP65 with sealing ring
• Compatible with converters: SINAMICS V70 & V90

Customer benefits:

• High dynamic response and accuracy.
• Compact dimensions for better installation.
• Quick and easy installation with quick-release connector.
• High moment of inertia for better load adjustment.
• Optimal control quality regarding torque and speed accuracy.
• Covering rated torque from 1.27 Nm to 33.40 Nm and rated speed from 2000 rpm to 3000 rpm.
• Adaptable to specific user requirements with various options.
