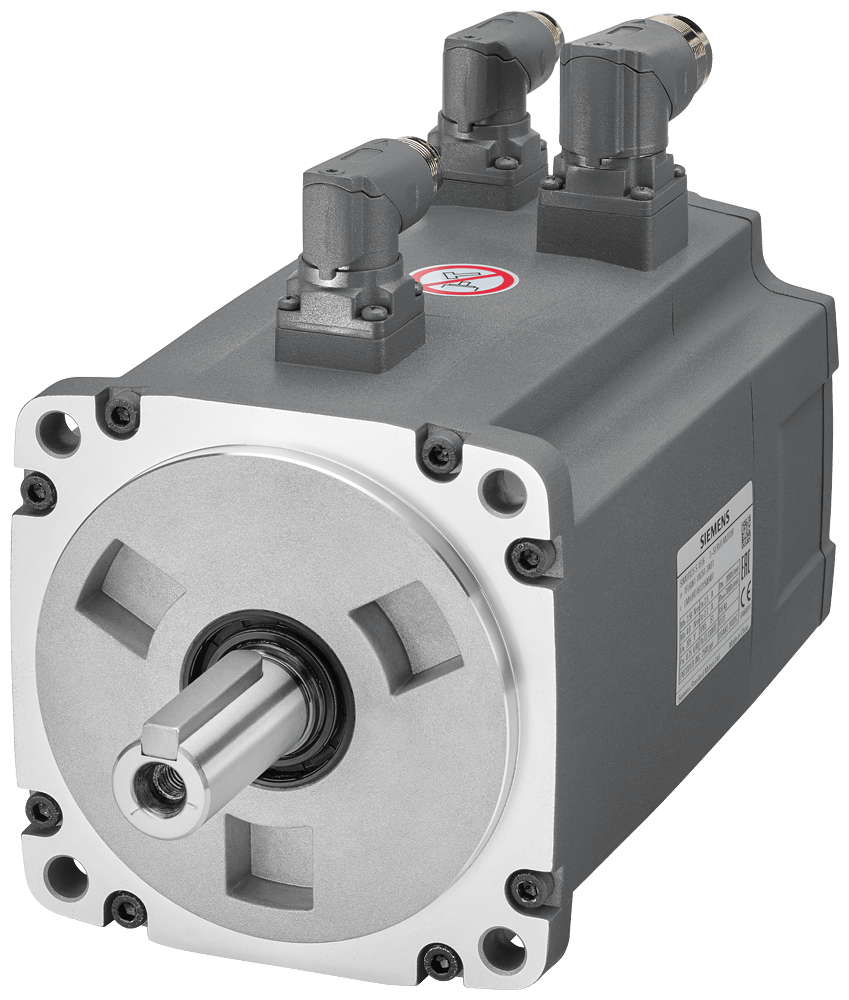

1FL6066-1AC61-2LA1

Description

Simotics S-1FL6

The SIMOTICS S-1FL6 servo motor is suitable for simple and highly dynamic applications in conjunction with the SINAMICS V90 servo converter.

Technical details:

• Operating voltage: 3AC 400 V
• Power: Pn=1.75 kW
• Rated speed: Nn=2000 rpm
• Standstill torque: M0=11 Nm
• Nominal torque: MN=8.36 Nm
• Shaft height: 65 mm, with angle plug
• Absolute encoder: 20-bits (12-bit multi-turn) with feather key, tolerance N without holding brake
• Degree of protection: IP65 with sealing ring compatible with the converters SINAMICS V70 & V90

Customer benefits:

• High dynamic response and precision
• Compact dimensions
• Quick and easy installation thanks to the use of a quick-release connector
• High moment of inertia for better load adjustment and optimal control quality regarding torque and speed accuracy
• Adaptable to specific user requirements with various options
