1FL6066-1AC61-2AG1

Description

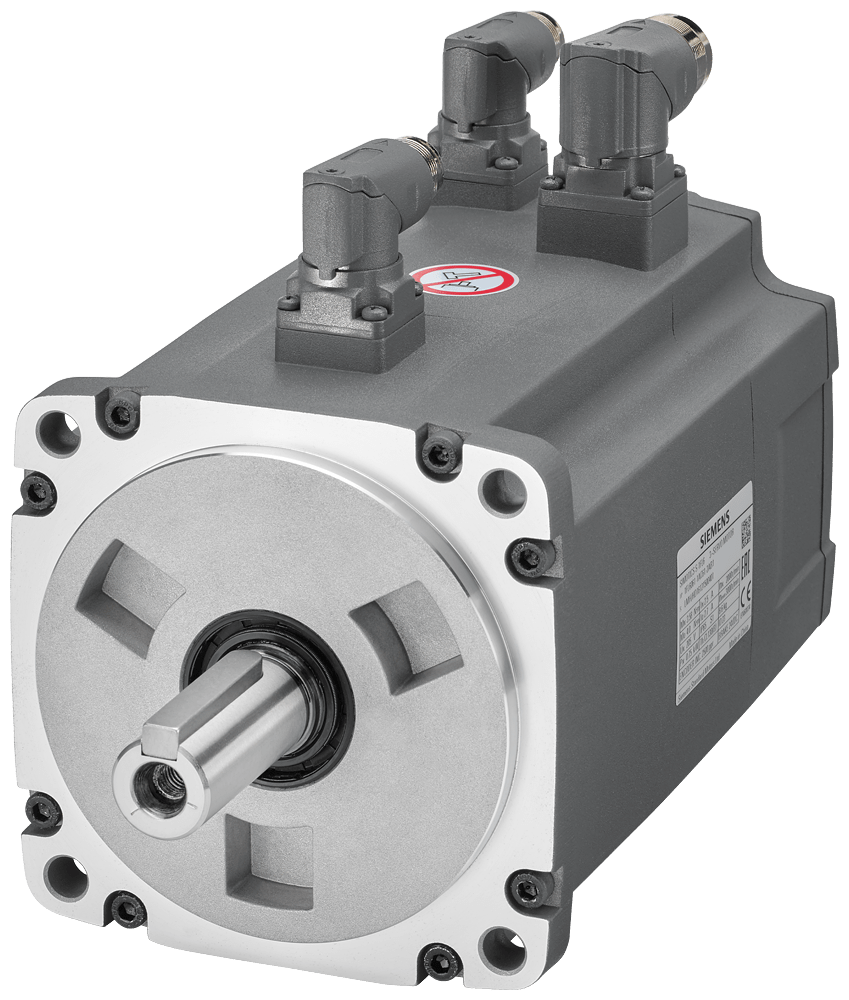

Simotics S-1FL6

The SIMOTICS S-1FL6 servo motor is suitable for simple and highly dynamic applications in conjunction with the SINAMICS V90 servo converter.

Technical details:

• Operating voltage: 3AC 400 V
• Pn: 1.75 kW
• Nn: 2000 rpm
• M0: 11 Nm
• MN: 8.36 Nm
• Shaft height: 65 mm, with angle plug
• Encoder: incremental encoder 2500 incr./rev.
• Shaft type: plain shaft
• Tolerance: N
• Degree of protection: IP65 with sealing ring
• Compatible with converters: SINAMICS V70 & V90
• Braking performance: between 0.40 kW and 7.00 kW
• Rated torque range: 1.27 Nm to 33.40 Nm
• Rated speed range: 2000 rpm to 3000 rpm
• Optionally: TTL 2500 ppr incremental encoder

Customer benefits:

• High dynamic response and accuracy
• Compact dimensions
• Quick and easy installation thanks to the use of a quick-release connector
• Better load adjustment and optimal control quality regarding torque and speed accuracy
• Adaptable to specific user requirements with various options, connectors, encoders, and additional accessories
