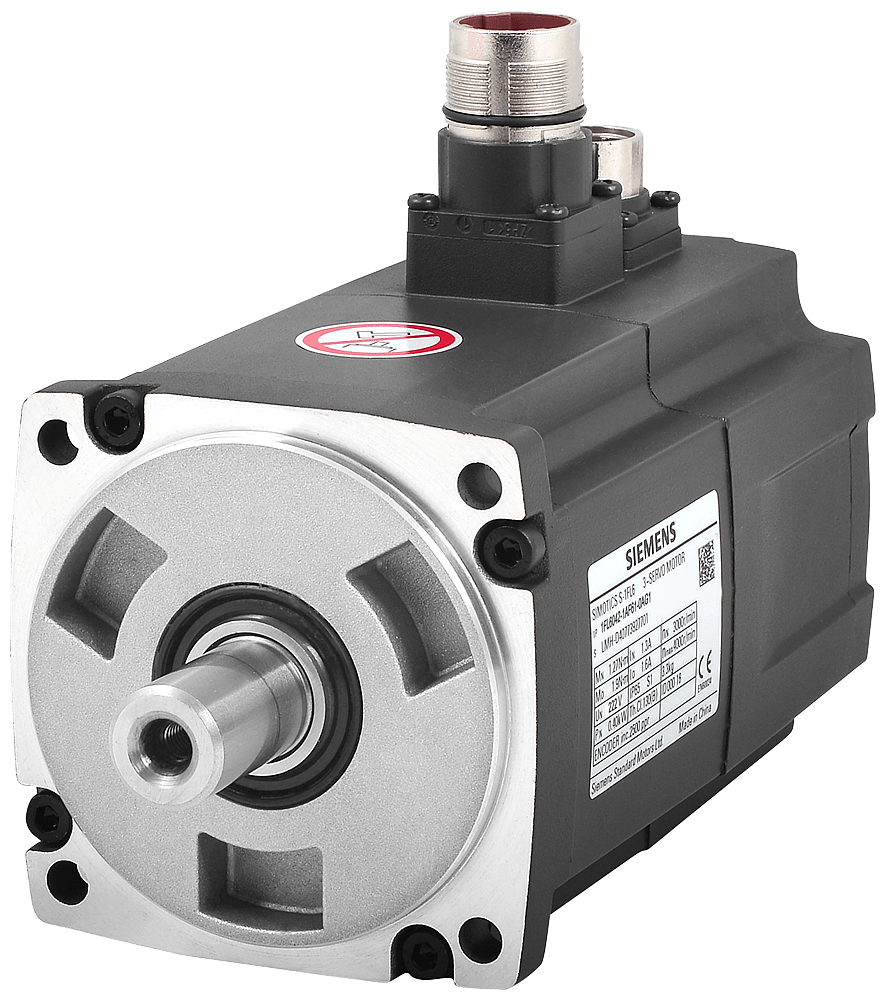

1FL6044-1AF61-2AG1

Description

Simotics S-1FL6

The SIMOTICS S-1FL6 servo motor is suitable for simple and highly dynamic applications in conjunction with the SINAMICS V90 servo converter.

Technical details:

• Operating voltage: 3AC 400 V
• Pn: 0.75 kW
• Nn: 3000 rpm
• M0: 3.5 Nm
• MN: 2.39 Nm
• Shaft height: 45 mm, with angle plug
• Incremental encoder: 2500 incr./rev.
• Plain shaft, Tolerance N without holding brake
• Degree of protection: IP65 with sealing ring
• Compatible with converters: SINAMICS V70 & V90
• High moment of inertia for better load adjustment
• Rated torque range: 1.27 Nm to 33.40 Nm
• Rated speed range: 2000 rpm to 3000 rpm
• Optional TTL 2500 ppr incremental encoder
• Natural cooling as standard
• Braking performance range: 0.40 kW to 7.00 kW

Customer benefits:

• High dynamic response and accuracy
• Compact dimensions
• Quick and easy installation with quick-release connector
• Optimal control quality with regard to torque and speed accuracy
• Adaptable to specific user requirements with various options
• Seamless drive system when combined with SINAMICS V90
