1FL6042-2AF21-1AG1

Description

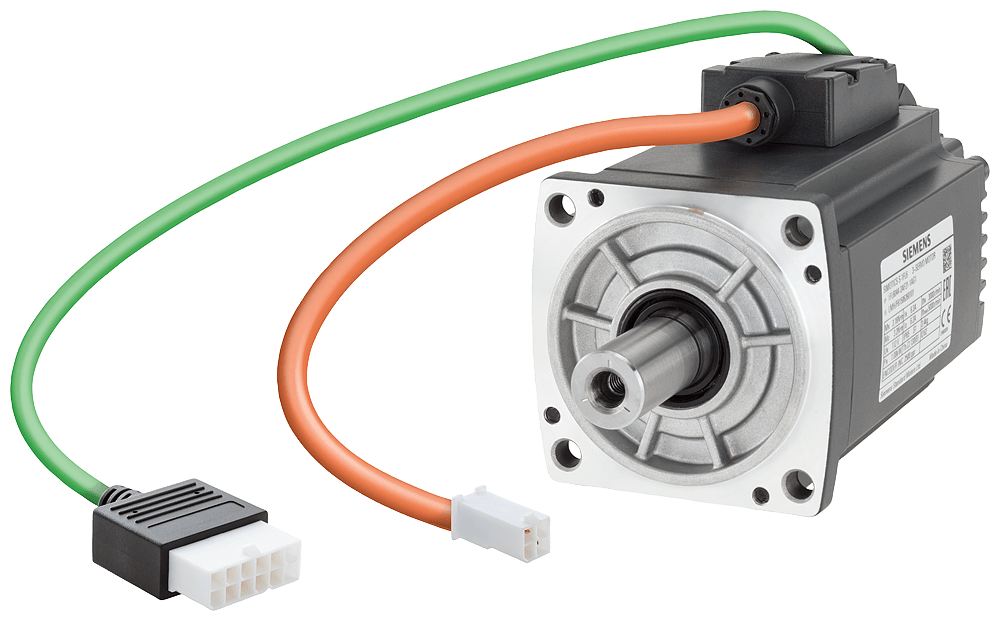

Simotics s-1fl6

The SIMOTICS S-1FL6 servo motor is suitable for simple and highly dynamic applications in conjunction with the SINAMICS V90 servo converter.

Technical details:

• Operating voltage: 230 V 3AC
• Pn: 0.75 kW
• Nn: 3000 rpm
• M0: 2.39 Nm
• MN: 2.39 Nm
• Shaft height: 40 mm
• Incremental encoder: TTL 2500 incr./rev.
• Plain shaft
• Tolerance: N without holding brake
• Degree of protection: IP65 with sealing ring
• Compatible with SINAMICS V90 converters

Customer benefits:

• High dynamic response
• Accuracy
• Compact dimensions
• Quick and easy installation thanks to quick-release connector
• No external cooling required; heat dissipated via motor surface
• Available in four shaft heights
• Braking performance of between 0.05 kW and 2.00 kW
• Covers ranges of rated torque from 0.16 Nm to 6.37 Nm and rated speed from 3000 rpm
• Adaptable to specific user requirements with various options
