1FL6042-1AF61-2LG1

Description

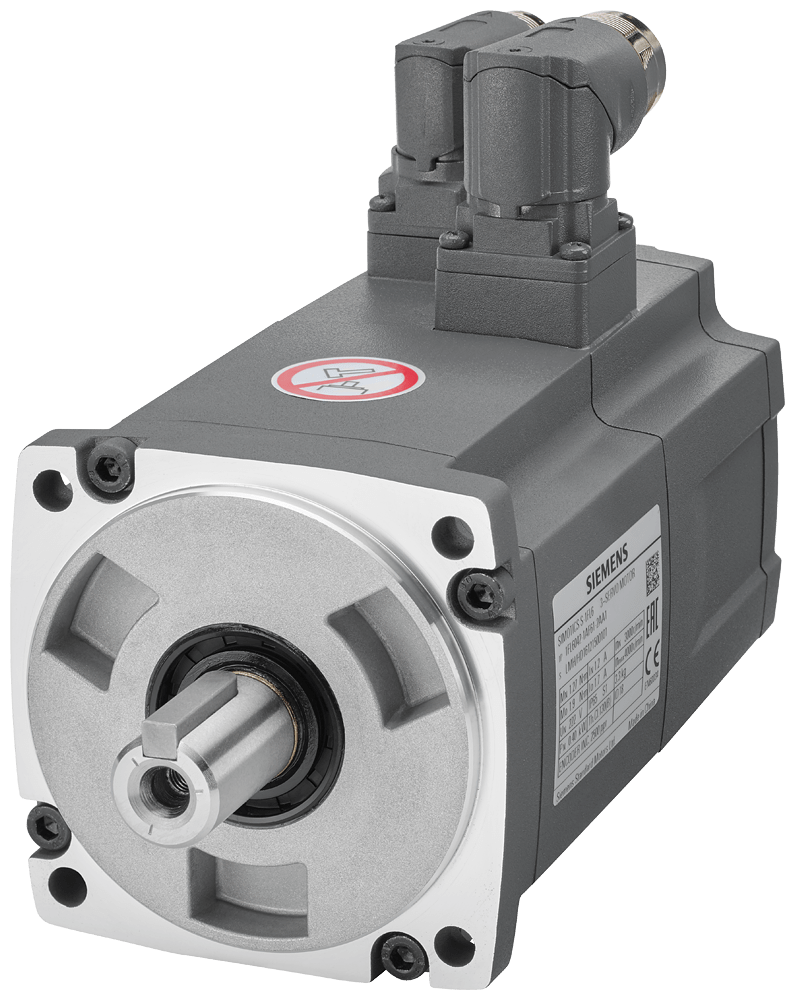

Simotics S-1FL6

The SIMOTICS S-1FL6 servo motor is suitable for simple and highly dynamic applications in conjunction with the SINAMICS V90 servo converter.

Technical details:

• Operating voltage: 3AC 400 V
• Pn: 0.4 kW
• Nn: 3000 rpm
• M0: 1.9 Nm
• MN: 1.27 Nm
• Shaft height: 45 mm, with angle plug
• Absolute encoder: 20-bits (12-bit multi-turn)
• Plain shaft, Tolerance N without holding brake
• Degree of protection: IP65 with sealing ring
• Compatible with converters: SINAMICS V70 & V90
• High moment of inertia
• Rated torque range: 1.27 Nm to 33.40 Nm
• Rated speed range: 2000 rpm to 3000 rpm
• Braking performance: between 0.40 kW and 7.00 kW
• Cooling: Natural cooling as standard

Customer benefits:

• High dynamic response
• Accuracy
• Compact dimensions
• Quick and easy installation
• Optimal control quality regarding torque and speed accuracy
• Adaptable to specific user requirements with various options
• Seamless drive system
