1FK2104-5AF10-0MA0

Description

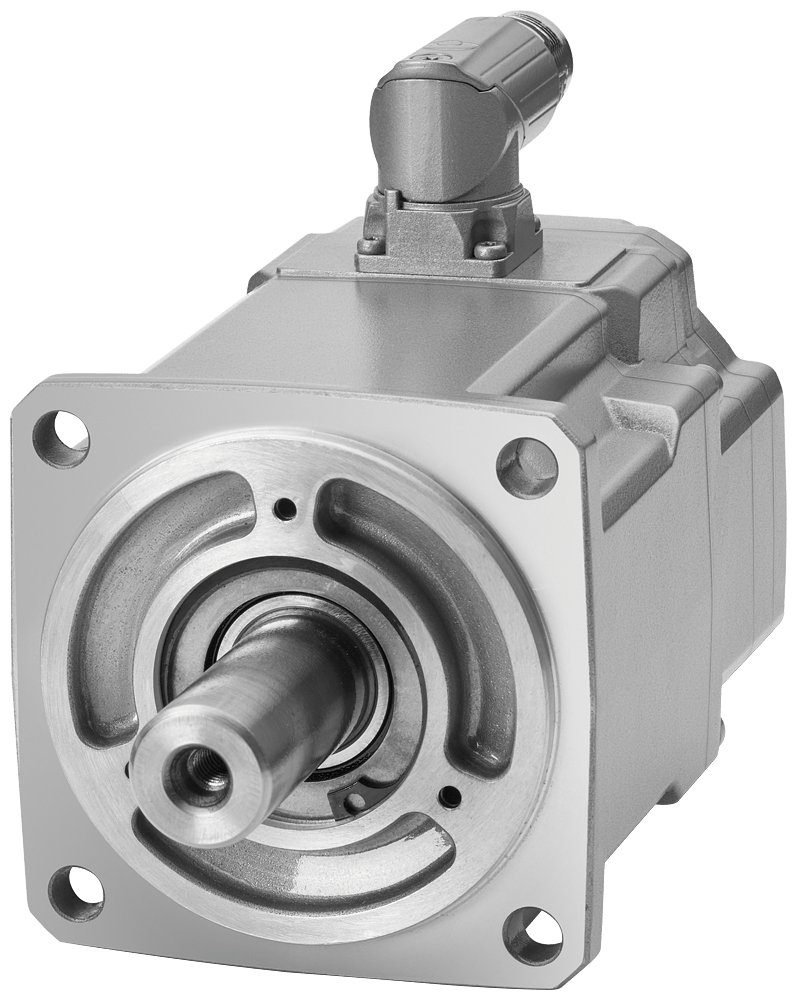

Simotics S-1fk2 Hd Servo Motor

SIMOTICS S-1FK2 servo motors are compact synchronous motors with high dynamic performance for a wide range of uses in industrial environments.

Technical details:

• M0=2.4 Nm
• PN = 0.75 kW at nN=3000 rpm (380-480 V)
• PN = 0.375 kW at nN=1500 rpm (200-240 V)
• With holding brake
• Degree of protection IP64
• Cylindrical shaft D19x40mm
• Absolute encoder 22-bit + 12-bit multiturn (encoder AM22DQC)
• With OCC interface
• Plug size M17, rotatable

Customer benefits:

• High power density, degree of protection, and overload capability
• Available in High Dynamic and Compact variants
• Short control and positioning times
• Fast and precise correction of disturbing quantities
• Stable control with high dynamic performance
• Can be configured to address a wide range of requirements
• Different shaft heights available from 20 to 100
• Shaft sealing ring available for IP65 protection
